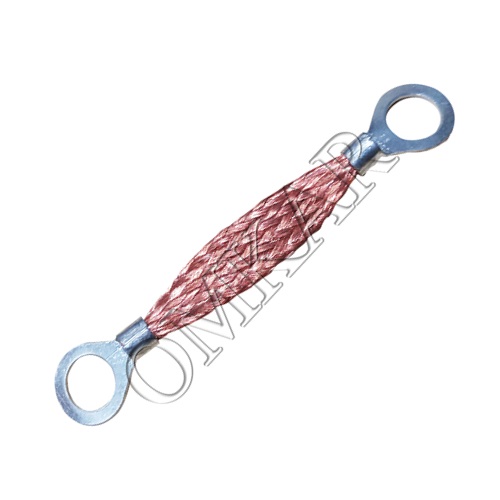

Flange Earthing Jumpers
Flange Earthing Jumpers are manufactured from high quality ETP grade copper wires. Deepening upon customer requirement copper wire braid is manufactured in round form or flat form. The area, diameter, width & thickness can customized based on customer requirement. Once the customer requirement is final copper braid is manufactured in round form of flat form. These copper braids can be manufactured in bare copper as well as in tin plated copper. Based on customer specification copper terminal in manufactured to specific thickness and hole size. Terminal is tin plated and its crimped to braid after cutting the braid to customized length.
Flange Earthing Jumpers are also called as Earth Continuity Strap, Flange Bonding Jumpers, Copper Jumpers, Flange Jumpers, Bonding Jumper, Grounding Jumpers or Earthing Jumpers. Flange Earthing Jumpers are flexible in nature and can bend at any degree therefore they are most convenient for installation so also referred as Flexible Jumpers.
Base material of pipeline flange is always MS or SS so to avoid metal corrosion jumper terminals are always tin plated. Connecting Copper Braids are Bare (Without Plating), Tin Plated ( Tinned ) or Insulated as per customer requirement.
Earthwell Industries manufactures Widest Range of Flange Earthing Jumpers as per Industry Standard & Customized Design.
Our Standard Manufacturing Range is,
Flange Class
Flange Sizes
Lengths
Hole Sizes
Types
Braid Area
Lug Thickness
150, 300, 600, 900.
½ Inch to 16 Inch.
75 mm to 800 mm.
6 mm to 52 mm.
Bare Copper Jumper, Tin Copper Jumper, Insulated Copper Jumper.
2.5 sq. mm to 50 sq. mm.
0.6 mm to 3 mm.
Bare Flange Earthing Jumper
Tinned Flange Earthing Jumpers

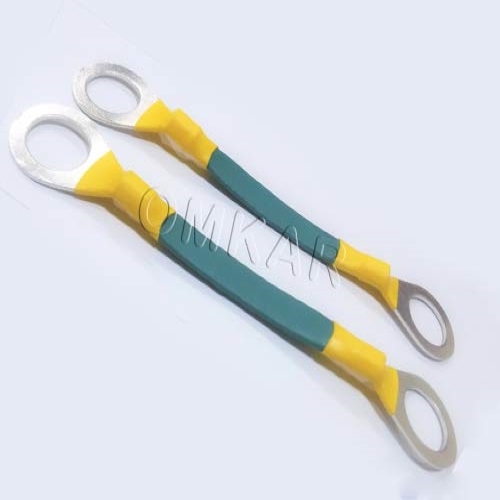

Insulated Flange Earthing Jumpers
Earthwell Industries Manufactures Following Items,
Copper Wire Braided Strips, Copper Wire Braided Ropes, Copper Wire Stranded Ropes, Copper Braids, Copper Earthing Jumpers, Braided Earthing Jumpers, Copper Jumpers, Earth Braids, Flange Earthing Jumpers, Copper Jumpers, Strip Type Copper Jumpers, Earth Continuity Strap, Static Earthing Jumper, Static Grounding Clamps, Spiral Grounding Clamps, Bonding Jumpers, Copper Flexible Braids, Copper Braid Bonds etc.
